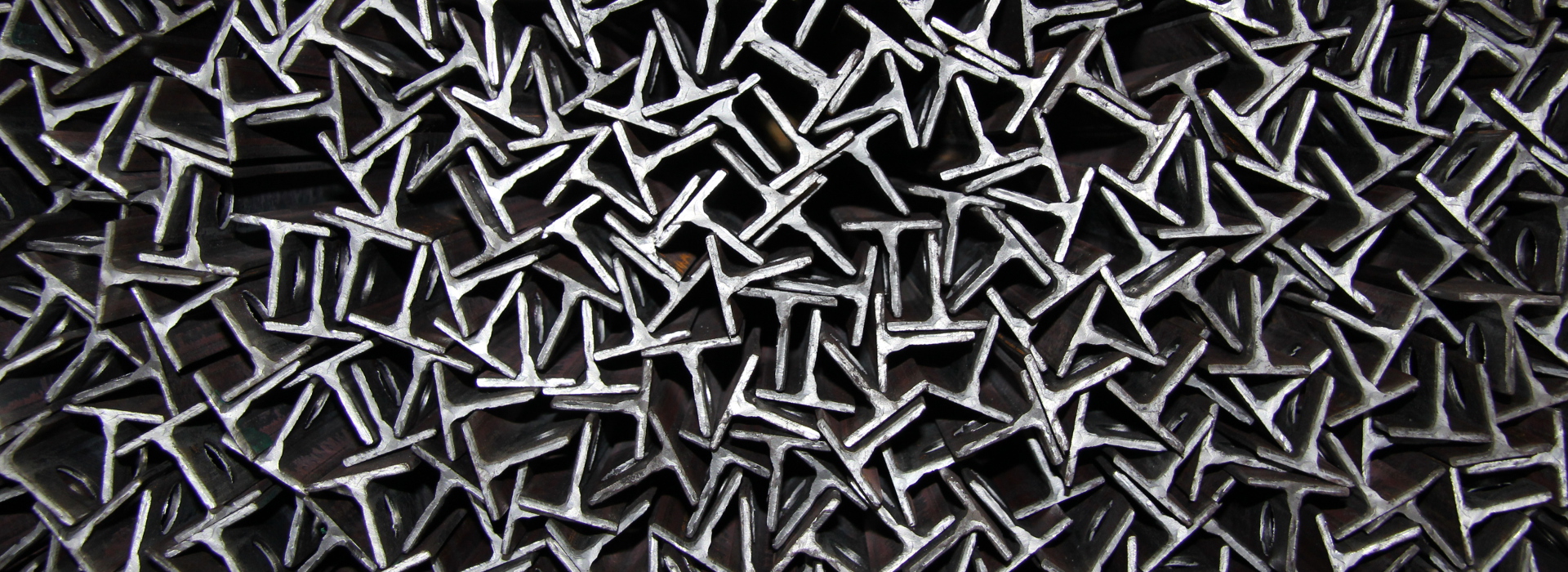

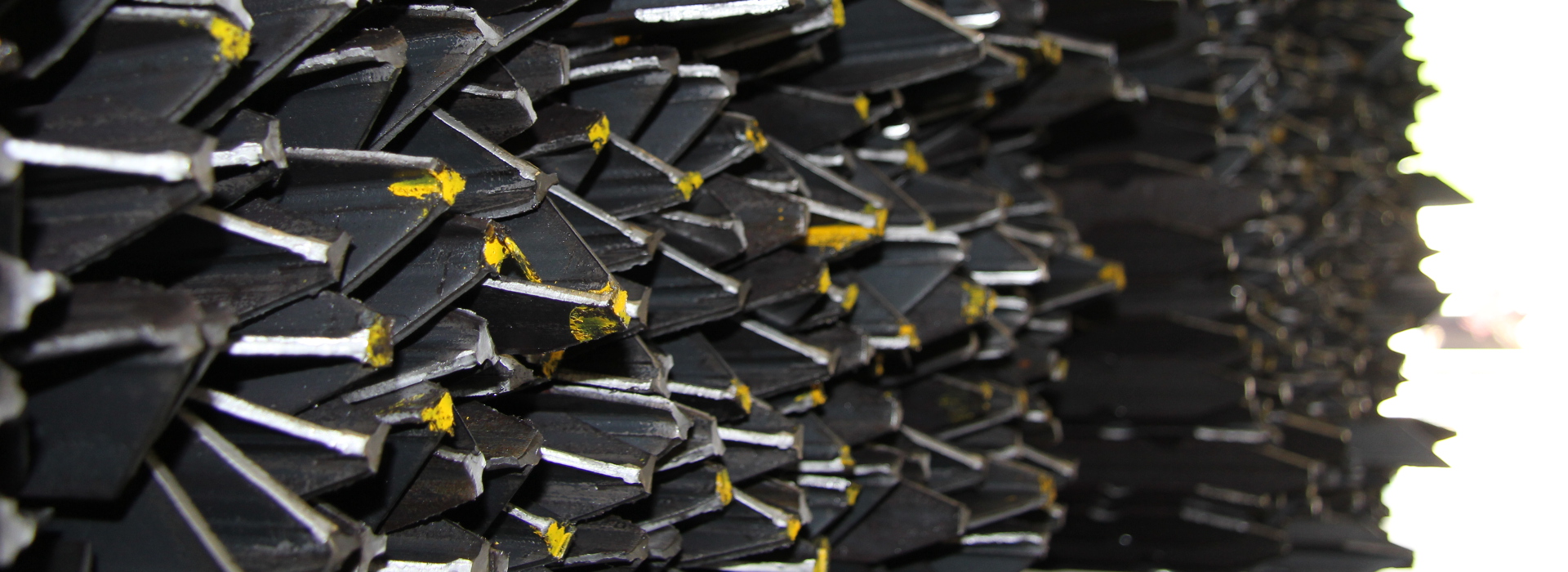

T POST for metallic fences

- LIGHTWEIGHT

- HEAVYWEIGHT

- SUPER LIGHTWEIGHT

- EXTRA LIGHTWEIGHT

40x40x5.0 mm - 50x50x6.0 sections T-posts can be supplied on request
Basic 25x25 mm L- shaped brace arm or 25x12 mm U – shaped are available
Zinc fence posts maximum height 300 cm available
Plastic fence posts maximum height 290 cm available

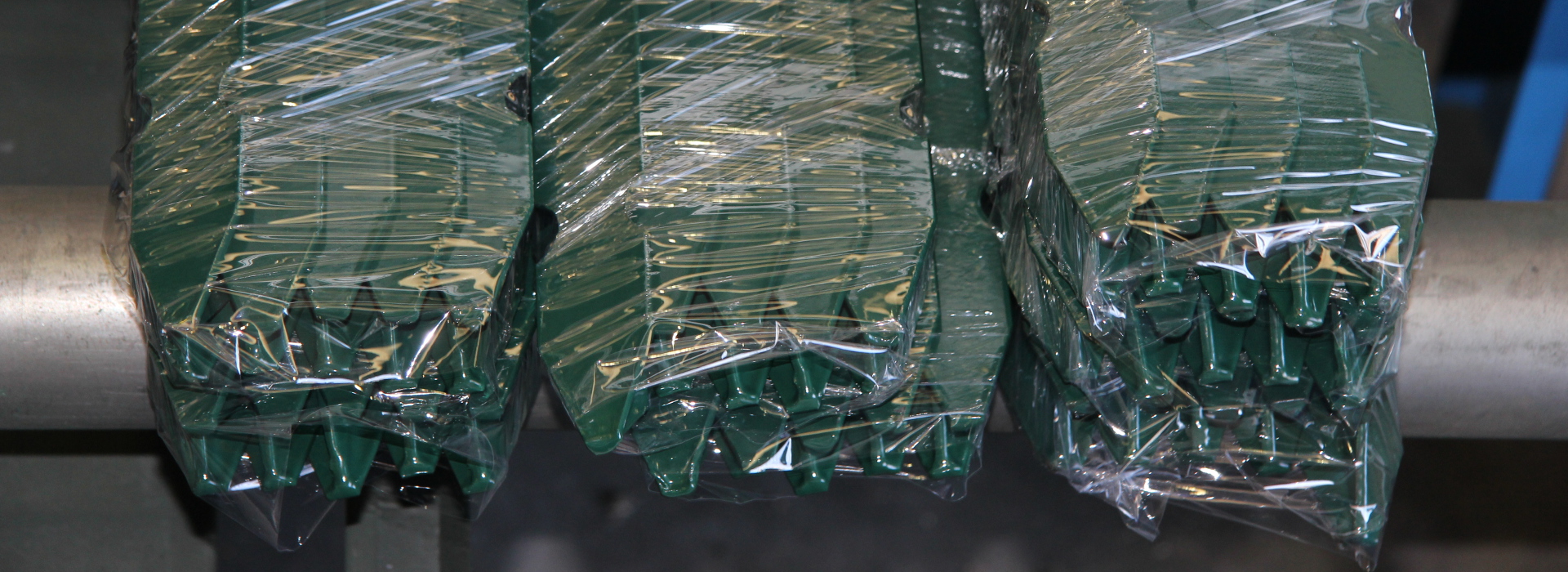

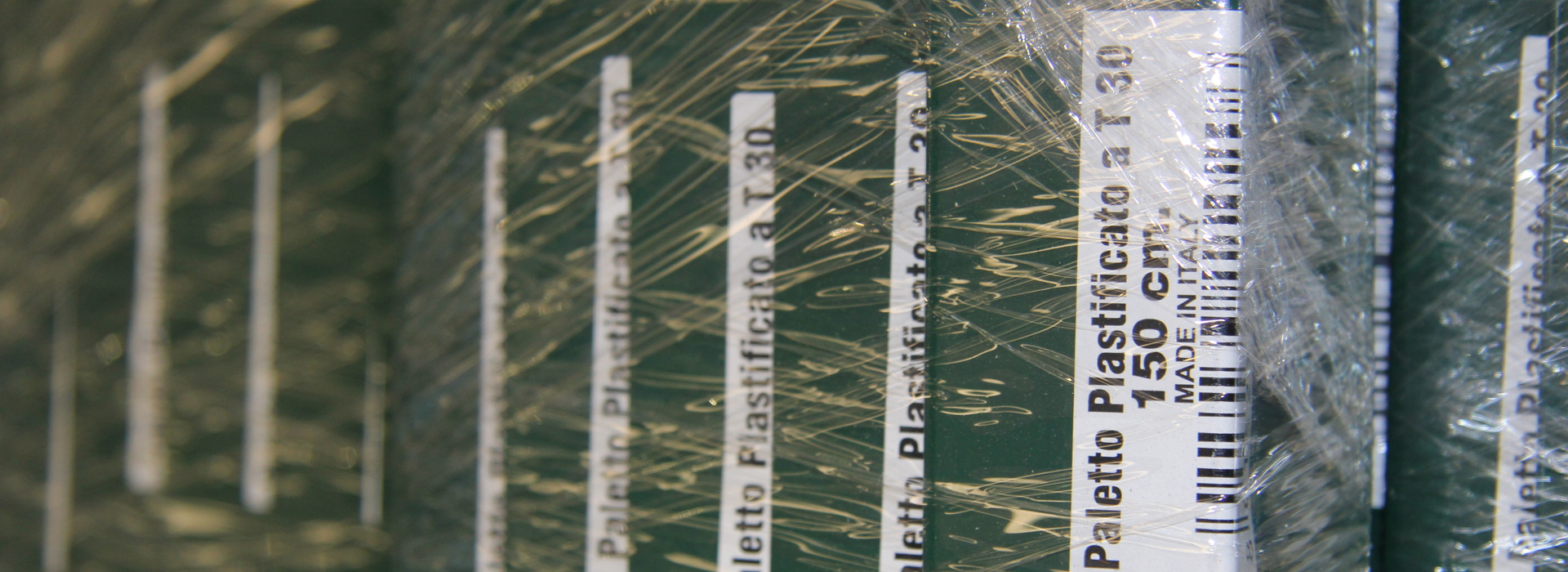

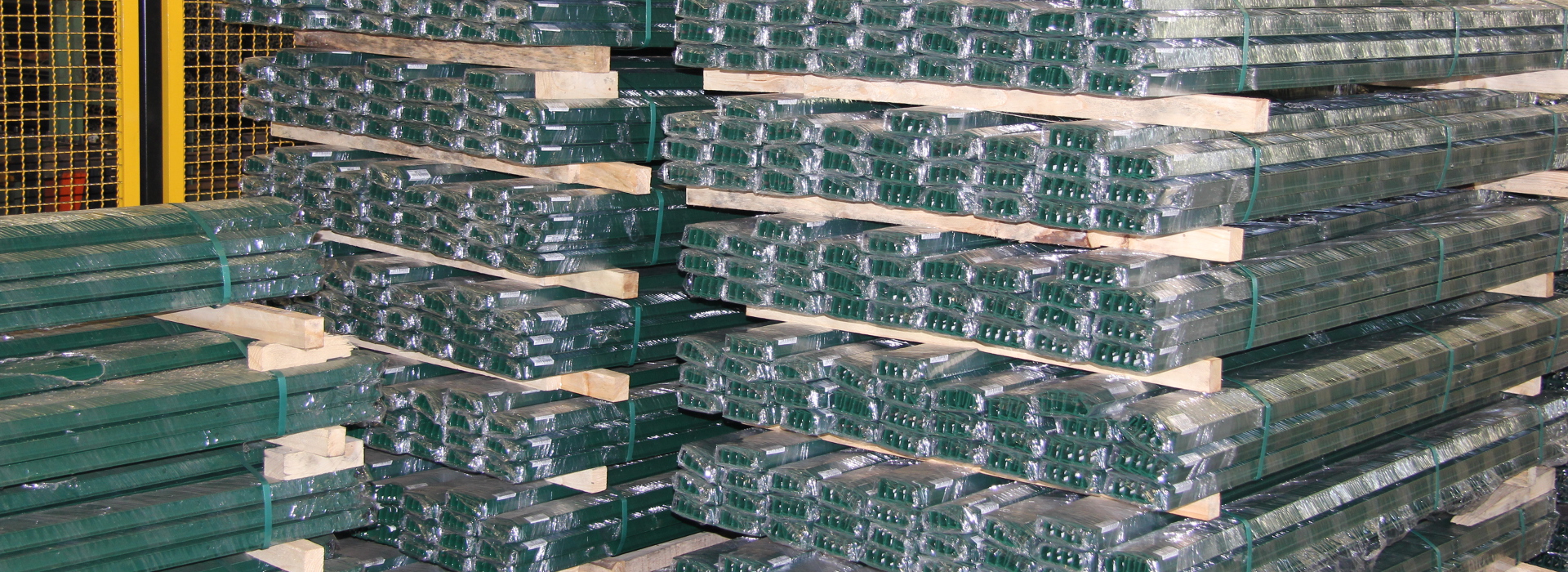

Packaging quantity: 10 pcs in bundles of 100
Green colour RAL 6005

Available finishes:

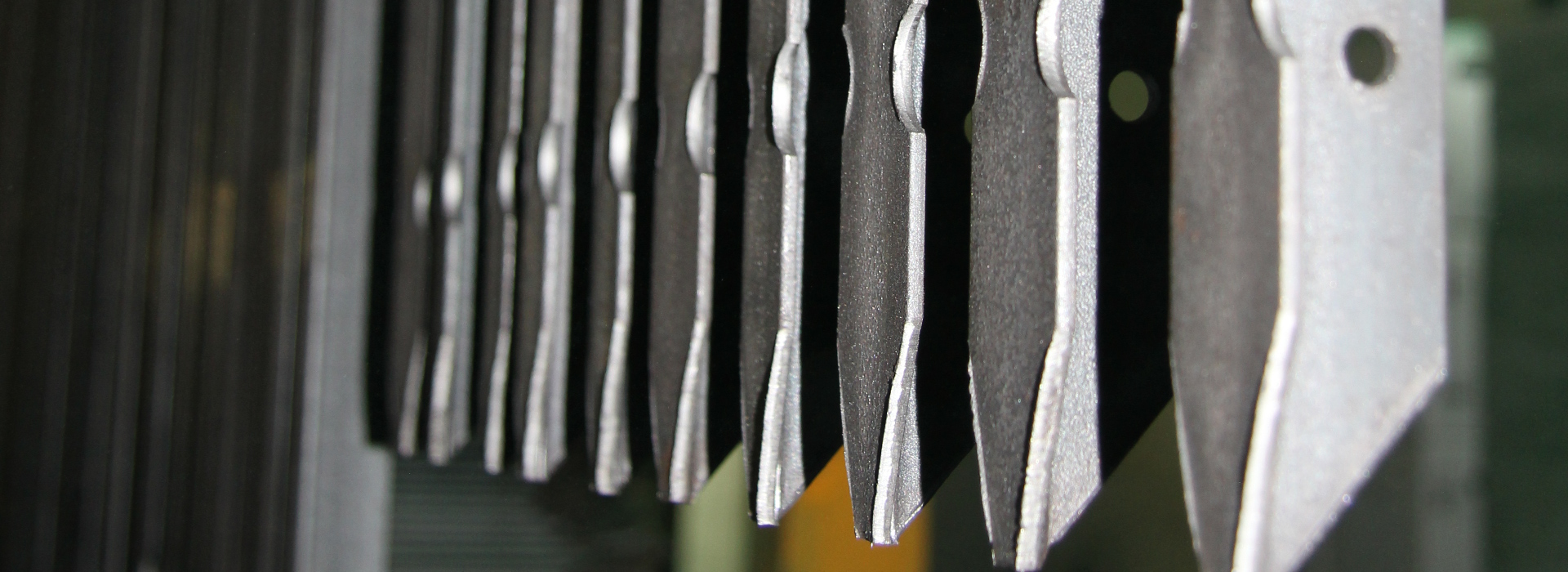

PLASTIC COATED POSTS: The sandblasted Siderlamina Sud protective treatment is ideal to remove any impurities and to guarantee a superior grip thanks to the electrostatic polyester powder coating.

HOT DIP GALVANIZED: the galvanization treatment is entrusted to third parties that ensure the qualitative requirements of the product, in compliance with UNI EN ISO 1461 rules.

TECHNICAL SPECIFICATION:

LIGHTWEIGHT

LIGHTWEIGHT POST ( plastic/galvanized )
Height/cm Section/mm Weight/KG
100 30x30x3,5 1,55
125 30x30x3,5 1,85
150 30x30x3,5 2,20
175 30x30x3,5 2,60
200 30x30x3,5 3,10
225 30x30x3,5 3,49
250 30x30x3,5 3,88
200 35x35x4,0 3,95
225 35x35x4,0 4,65
250 35x35x4,0 5,26
300 35x35x4,0 5,80

HEAVYWEIGHT

HEAVYWEIGHT POST ( plastic/galvanized )
Height/cm Section/mm Weight/KG
130 30x30x5,0 1,55
150 30x30x5,0 1,85
180 30x30x5,0 2,20
200 35x35x5,5 2,60
230 35x35x5,5 3,10
250 35x35x5,5 3,49
300 35x35x5,5 3,88
T.40x5,0 – T.50x6,0 ( plasticized/galvanized )
200 40x5,0 – 50x6,0
250 40x5,0 – 50x6,0
300 40x5,0 – 50x6,0

SUPER LIGHTWEIGHT

SUPER LIGHTWEIGHT POST ( plastic/galvanized )
Height/cm Section/mm Weight/KG
100 30x30x3,0 1,40
125 30x30x3,0 1,70
150 30x30x3,0 2,00
175 30x30x3,0 2,30
200 30x30x3,0 2,70
225 30x30x3,0 3,00
250 30x30x3,0 3,30
200 35x35x3,5 3,70
225 35x35x3,5 4,20
250 35x35x3,5 4,70

EXTRA LIGHTWEIGHT

EXTRA LIGHTWEIGHT POST ( plastic/galvanized )
Height/cm Section/mm Weight/KG
100 30x30x2,7 1,27
125 30x30x2,7 1,59
150 30x30x2,7 1,91
175 30x30x2,7 2,22
200 30x30x2,7 2,54
225 30x30x2,7 2,86
250 30x30x2,7 3,18
200 35x35x3,0 3,16
225 35x35x3,0 3,56
250 35x35x3,0 3,95

IRON L - SHAPED BRACE ARM

L - SHAPED BRACE ARM ( plastic/galvanized )
Height/cm Section/mm Weight/KG
120 25x25 1,20
150 25x25 1,50
200 25x25 2,10

IRON U - SHAPED BRACE ARM

U - SHAPED BRACE ARM ( plastic/galvanized )
H cm. Sez.mm. Weight Kg. Circa
120 25x12 1,45
150 25x12 1,80
200 25x12 2,40
